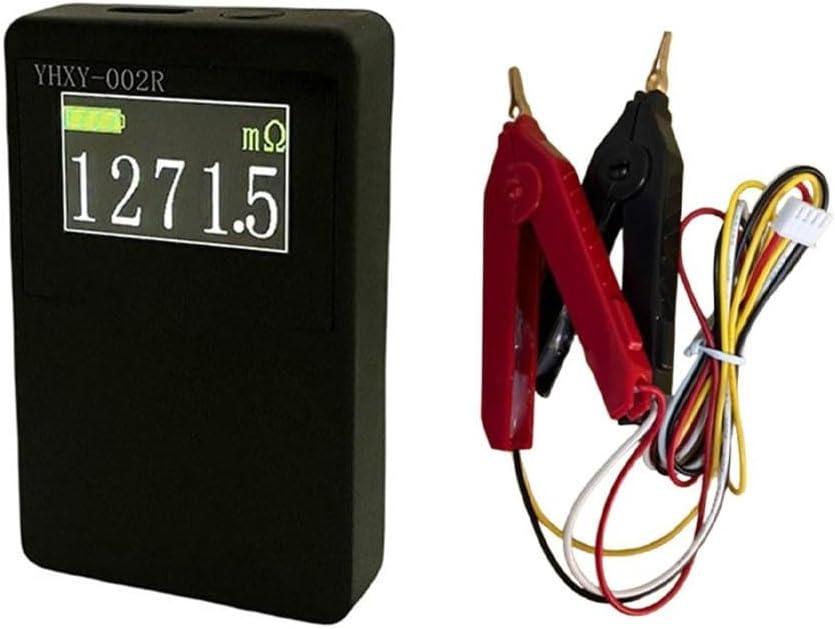

YHXY-002R DC Milliohmmeter Resistance Tester 0.03% Accuracy LCD Display 4-Wire Kelvin Test Tool 0.1 Milliohm-20 Ohm Range with Built-in Lithium Battery for Short Circuit Testing(Small)

Features:Use 0.02% professional table comparison calibration. To for ensure the accuracy and consistency of each unit.Test standard 1 milliohm: will display 0.9mR1.0mR1.1mR three situations. Most likely it will display 1.0mRTest standard 10 milliohm: will display 9.9mR 10.0mR10.1mR three situations. Most likely it will display 10.0mRTest standard 1 ohm: will display 999.9mR1000.0mR 1000.1mR three situations. Most likely to display 1000.0mRSpecifications:Part name: YHXY-002R resistance testerModel: YHXY-002RSize: 62.8*39*13.8MMColor: blackMaterial: absRange: 0.1 milliohms-20 ohms (automatic range)Display mode: LCD displayOperation way: Press the power button for 1S to turn on and off. When powered on: Automatically shut down after 160 seconds without operation, press once within 1S to switch the display font. Press twice within 1S to switch the background display style, press 3 times within 1S to display the temperature, press 4 times within 1S to enter the normal power-on mode, untilThe battery is lower than 10% and the power turns off automaticallyCharging indication: Automatically turn on when charging (turn off when fully charged)Accuracy: +-(0.03% reading + 1 word)Open circuit output voltage: <3.3V DCResolution: 0.1 milliohmsTest current: 25.3mADisplay unit:for mR (milliohms)Charging port input voltage: TYPE-C 5V 1ACharging current: 0.2APower supply: 3.7V 230mAHTest line length: 50CM four-wire test clipProduct accessories: four-wire Kelvin testWide range and high accuracy: 0.1 mR-20RResolution: 0.1 mR4-wire Kelvin testUltra-small size, easy to carry, LCD screen display is clearer and more intuitiveUses 24-bit ADC chipBuilt-in lithium battery with long standby time (continuous use >3.5 hours)Package contents:A: 1*002RA host + small test clipB: 1*002RB host + large test clip

• [PROFESSIONAL ACCURACY IN TESTING] This resistance tester employs a precise calibration standard of 03%, delivering dependable readings within the range of 0.1 milliohm to 20 ohms, for professionals.
• [CLEAR LCD DISPLAY FOR EASY VIEWING] Features an intuitive LCD display that showcases readings such as 9mR and provides through multiple measurement scenarios.
• [EFFICIENT AUTOMATIC RANGING] Enjoy effortless operation with automatic range selection that adapts to your testing needs, catering to users of all skill levels.
• [PORTABLE AND COMPACT SIZE] Designed with dimensions of just 8 x 39 x 13.8mm, it's compact enough to fit into any toolkit or pocket, perfect for mobile technicians.
• [SIZING REMINDER] Remember to verify your measurement requirements against your specifications instead of using Amazon's sizing table.
