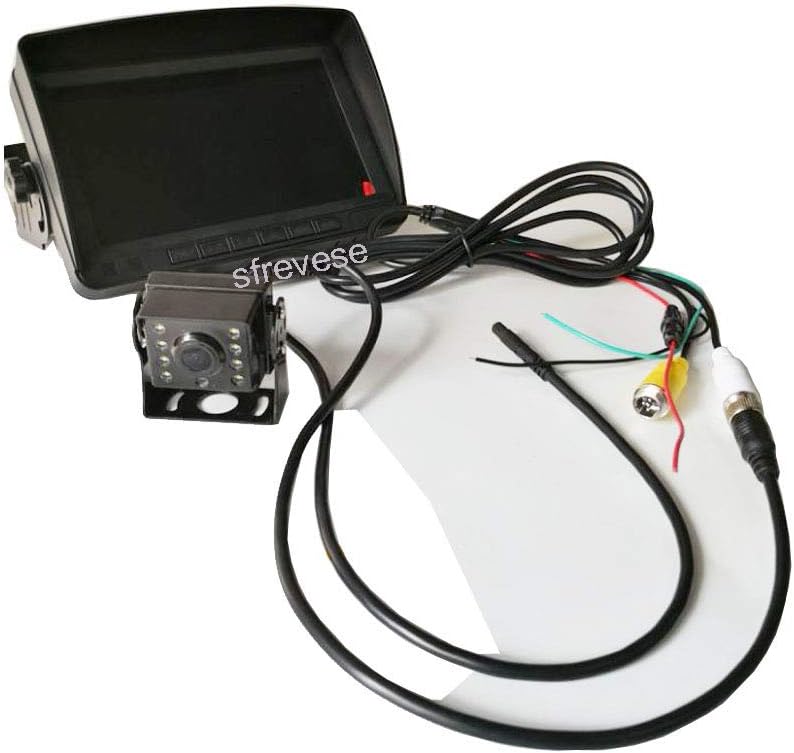

Vehicle Backup Rear View Car Camera and Monitor Kit,IP69 Waterproof Night Vision HD 1080P Rear Camera + 7" IPS SD DVR Recording 2CH Split Monitor with 4 Pin 15m Cable for Bus Trailer RV Camper Truck
Product details
| Management number | 209167715 | Release Date | 2026/03/29 | List Price | $30.00 | Model Number | 209167715 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Only need to connect the monitor power wire with car electronics sytem: Red and yellow wire to car Positive/Live, Black wire to GND, Green wire to reversing gear Trigger+ (or No need to connect) 7 Inch AHD 1080P Screen Monitor Display Size: 7 Inch AHD DVR Screen Power requirement:DC 12V-24V Consumption:8W Video:2 channelS input ,Split Screen Display Our Split monitor can display two video at the same time,you can also swicth to AHD 1 or AHD 2 by "CH" button Build in SD DVR Recording functions(SD card not include) Grid Lines Can be turn on or off Please set it with the monitor system "General Settings" Car ACC Line on,and connect the green cable with reversing trigger+ AHD 2 will show with Grid Lines if you set "ACC line on" reversing parking backup view priority You can Set the camera for Mirror or none mirror by "General Settings" Net Weight: Approx. 1000g Lauguage:English,Russian,Chinese AHD 1080P Car Rear View Camera 100% Not Wash Out CCD Sensor Mirror image without Grid Lines TV system: PAL/NTSC Lens:2.1mm(170 View angle ) Number of pixels: 2 Megapixel Camera Minimum illumination:0 LUX Backlight compensation: Auto White Balance: Auto Tracing Auto Gain Control: Automatic Night vision: Yes Video Output:4Pin Connector work Temperature:-20°C~+60°C Power Requirement: DC 12V-24V Weight: Approx 200g Waterproof: IP 69 Packaging include: 1 x 4Pin 7" AHD Rear view Monitor 1 x Dashboard Bracket 1 x Remote controller 1 x Monitor Power Video Harness Cable 1 x 4Pin 8 LED AHD Rear View Camera 1 x 4Pin 15M/49ft Cable 1 x Manual
- Car Backup Camera and Monitor Kit Parking Assistance System 12V/24V : 7 inch IPS 1080P Monitor + 8 LED Night Vision 4Pin AHD Reverse Camera with 4 Pin 15m Connector Cable, Clear mirror image without Grid lines.
- 15m/49ft 4-Pin Extension cable for Long Bus Truck Trailer RV Van Motorhome Schoolbus Camper Lorry 5th wheel and All other heavy Duty
- IP69 Waterproof Rear Camera with 4 Pin Connector, 8 LED lights Night Vison view clearly at night, 100% Not Wash Out SHARP CCD Sensor HD Mirror image no Distance Lines Rear View Camera, and 2.1mm lens (170° horizontal wide view angle )
- 4Pin 7inch IPS DVR monitor 1080P, full color display and low power consumption, 2 channelS input ,Split Screen Display,It can display two video at the same time,AHD1 or AHD 2 Signal video also,
| UPC | 713440818448 |
|---|---|
| Brand | sfrevese |
| Voltage | 12 Volts |
| Item Weight | 1.4 Kilograms |
| Screen Size | 7 Inches |
| Manufacturer | sfrevese |
| Installation Type | Surface Mount,Dashboard Mount |
| Compatible Devices | Monitor |
| Display Technology | LED |
| Real Angle of View | 170 Degrees |
| Video Capture Resolution | 1080p |
| Item Dimensions L x W x H | 8.6"L x 5.9"W x 3.5"H |
| Optical Sensor Technology | CCD |
