SSI TECHNOLOGIES MG-9V Series Media Gauge Digital Pressure Gauge Sensor with LCD Display, 200psig Operating Pressure, 9V, 0.25% Accuracy, 1/4-18 NPT Male Process Connector Type -MG-200-A-9V
Product details
| Management number | 211156836 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211156836 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Digital Pressure Gauge, 3" dial, Automatic Shutdown after 5 min, SS sensor. Digital Pressure Gauge, 3" dial, Automatic Shutdown after 5 min, SS sensor. The Media Gauge is a multi-functional Digital gauge. Contains a media isolated piezoresistive pressure sensing element, signal conditioning, a 304 sensing port and LCD back lit display. A battery saver is incorporated to automatically shut the LCD disply off after 5 minutes prolonging the batteries life. Chemical Capabilities: Any Gas or Liquid compatable with 304L and 316L stainless steel. For example: Motor Oils, Diesel, Hydraulics, Water, Nitrogen, Air
- Battery Operated: Digital pressure gauge operates off a single 9V battery (included in package)
- Durable Design: Constructed with SS wetted parts for better pitting corrosion resistanc; IP65 and NEMA 4X Rated
- Highly Accurate: With an accuracy of ± 0.25% full scale

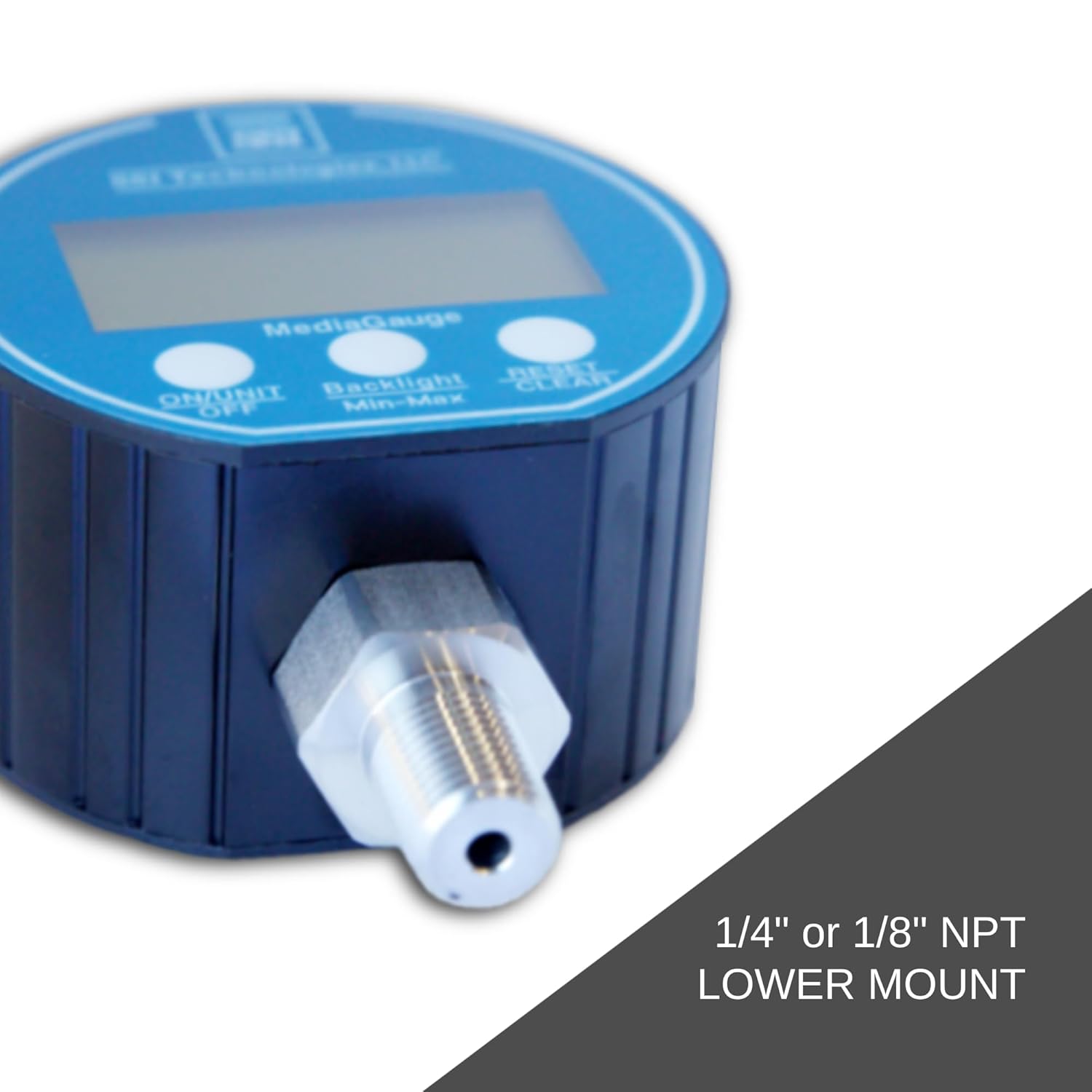

- 3 inch dial with a LCD display and 1/4 inch NPT Bottom Mount Connection
- Standard Features: 4-digit backlit display, 5-min. battery saver mode, multiple pressure unit readings (PSI/BAR/MPA), zero adjustment, and peak hold
- Typical Applications: General purpose, test, process control, MRO, water, pumps, spraying systems, pneumatics, flow, robotics, hydrogen storage, agriculture, refrigeration, compressors
| UPC | 853648005155 |
|---|---|
| Brand Name | SSI Technologies |
| Unit Count | 1.0 Count |
| Item Weight | 0.8 Pounds |
| Manufacturer | Kodiak Controls Inc. |
| Material Type | Acrylonitrile Butadiene Styrene (ABS), Rubber, Stainless Steel |
| Item Dimensions | 3.45 x 2.6 x 3.45 inches |
| Included Components | 9V Battery, Protective Rubber Boot |
| Global Trade Identification Number | 00853648005155 |
