ReadyCool 4 Row Aluminum Radiator Shroud Fan for Chevy Camaro Blazer 1970-1981, Monte Carlo El Camino Impala 1978-1987, Chevy GMC C/K/G Series C10 C20 C25 C3500 Nova Buick Regal
Product details
| Management number | 219823835 | Release Date | 2026/05/03 | List Price | $144.00 | Model Number | 219823835 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Package Include:1 X 4-Row AA5052 Aluminum Radiator1 X CNC Machined Radiator Cap1 X AA5052 Aluminum Shroud2 X 12" Fans (Includes mounting kits)1 X Thermostat Relay KitVehicle Fitment:For Chevrolet Blazer 1973-1980For Chevy/GMC C/K/G-Series C10 Suburban C15 Pickup C20 C30 C3500 G10 Van G1500 K10 K1500 ,etc 1970-1985For Chevy Nova 1975-1979For Chevy Camaro 1970-1981For Chevy Monte Carlo 1978-1987For Chevy El Camino 1978-1987For Chevy Impala 1980-1985For Buick Century 1977-1981For Buick Regal 1978-1987For Cadillac Seville 1976-1979Please check compatibility (FIT 26 2/9" WIDE CORE ONLY)Radiator Specifications:High-Performance Racing Spec.4-Row of tubes Core Racing DesignCore Dimensions: 16 6/7" H x 26 2/9" W Overall Dimensions: 18 1/2" H x 31 5/7" W Inlet Diameter: 1-1/2" Outlet Diameter: 1-4/7"Trans Cooler:Included φ32*215*G1/4（Z)Mount Type: SaddleFAN Specification:Maximum Fan CFM: 1730 cfmFan Diameter (in): 12.050”Thickness (in): 2.500”Number of Blades: 10 S-Type bladesBlade Material: PlasticAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie InstallationThermostat Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.
- 【Fitment】- Aluminum Radiator Shroud Fan Relay for 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 1980 1981 Chevy Camaro Blazer, 1978 79 80 81 82 83 84 85 86 1987 Monte Carlo El Camino, 70-85 Chevy/GMC C/K/G-Series C10-C20 C25-C3500.

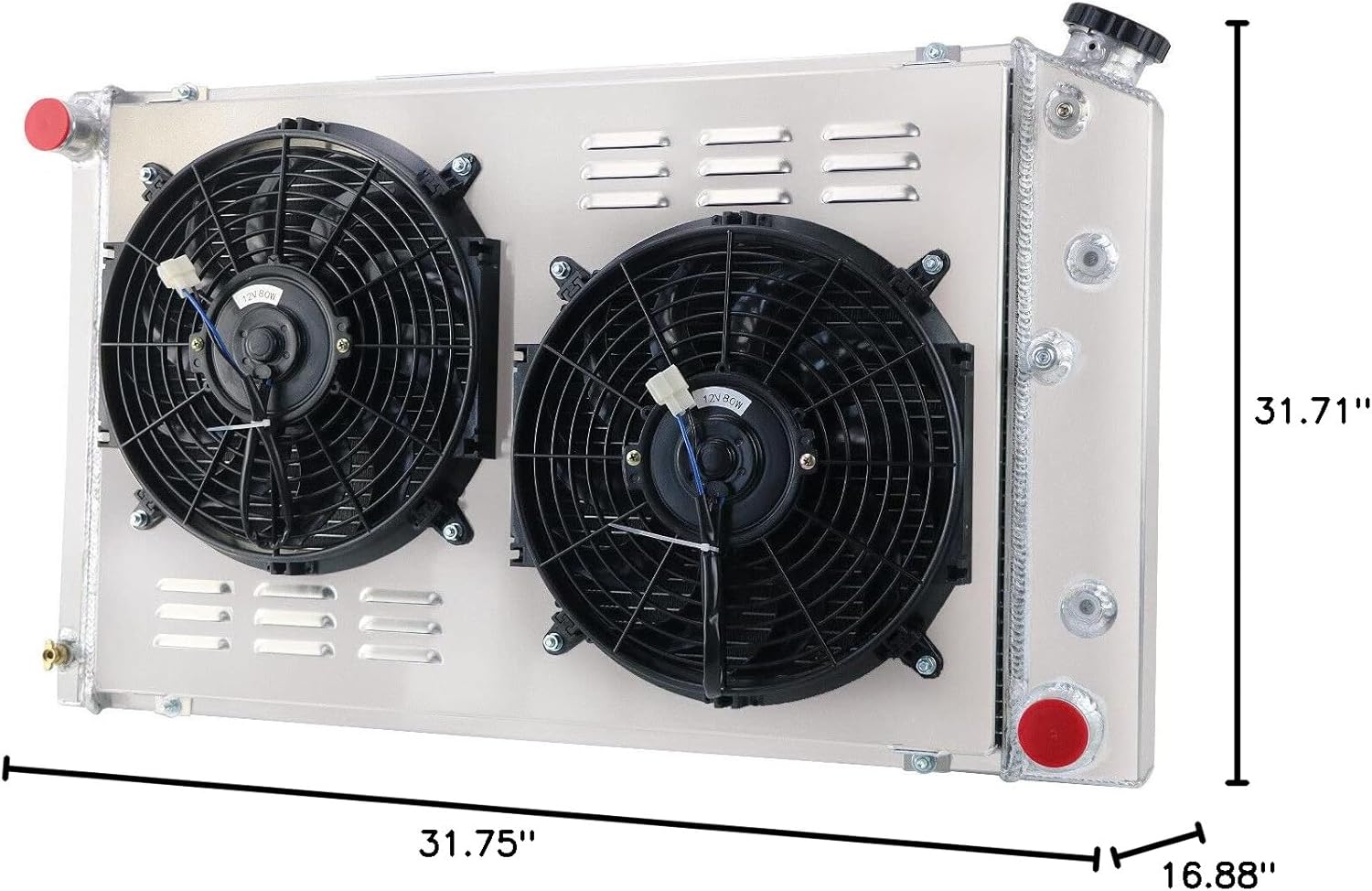

- 【Specification】- Core Dimensions: 16 6/7" H x 26 2/9" W; Overall Dimensions: 18 1/2" H x 31 5/7" W; Inlet: 1-1/2"; Outlet: 1-4/7", Trans Cooler:Included φ32*215*G1/4 (Z).
- 【Premium Material】- Full aviation aluminum craftsmanship, 100% welded by TIG. Carefully crafted to exceptional OE standards for a precise fit, Aircraft AA5052 grade aluminum and with a raw aluminum finish.
- 【Efficient Application】- This Aluminum Radiator is at least 30%-45% more efficient than stock ones, which means that your cooling system will be more efficient and more resistant to temperature surges in racing applications.
- 【US Local Stock & 1-Year Warranty】- We are a seller specializing in Cooling systems & Radiators. If you encounter any problems, please kindly contact us by sending Amazon Message, and we will try our best to help you.
| Model | 1116--MC162DZ |
|---|---|
| Wattage | 80 watts |
| Brand Name | ReadyCool |
| Part Number | 1116--MC162DZ |
| Manufacturer | ReadyCool |
| Material Type | Aluminum |
| Cooling Method | forced air |
| Item Type Name | Radiators |
| Number of Items | 1 |
| Air Flow Capacity | 1730 Cubic Feet Per Minute |
| Compatible Devices | Radiator |
| Included Components | 1 X 4 Core Aluminum Radiator, 1 X AA5052 Aluminum Shroud, 1 X CNC Machined Radiator Cap, 1 X Thermostat Relay Kit, 2 X 12" Fans (Includes mounting kits) |
| Power Connector Type | 3-Pin |
| Warranty Description | 100% Leak Tested |
| Item Dimensions L x W x H | 31.75"L x 31.75"W x 16.88"H |
