OP320 - A 3.7 inch Text Display HMI Support S485/RS232 Communication Port Mainly Used with PLC
Product details
| Management number | 211055636 | Release Date | 2026/04/04 | List Price | $18.35 | Model Number | 211055636 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

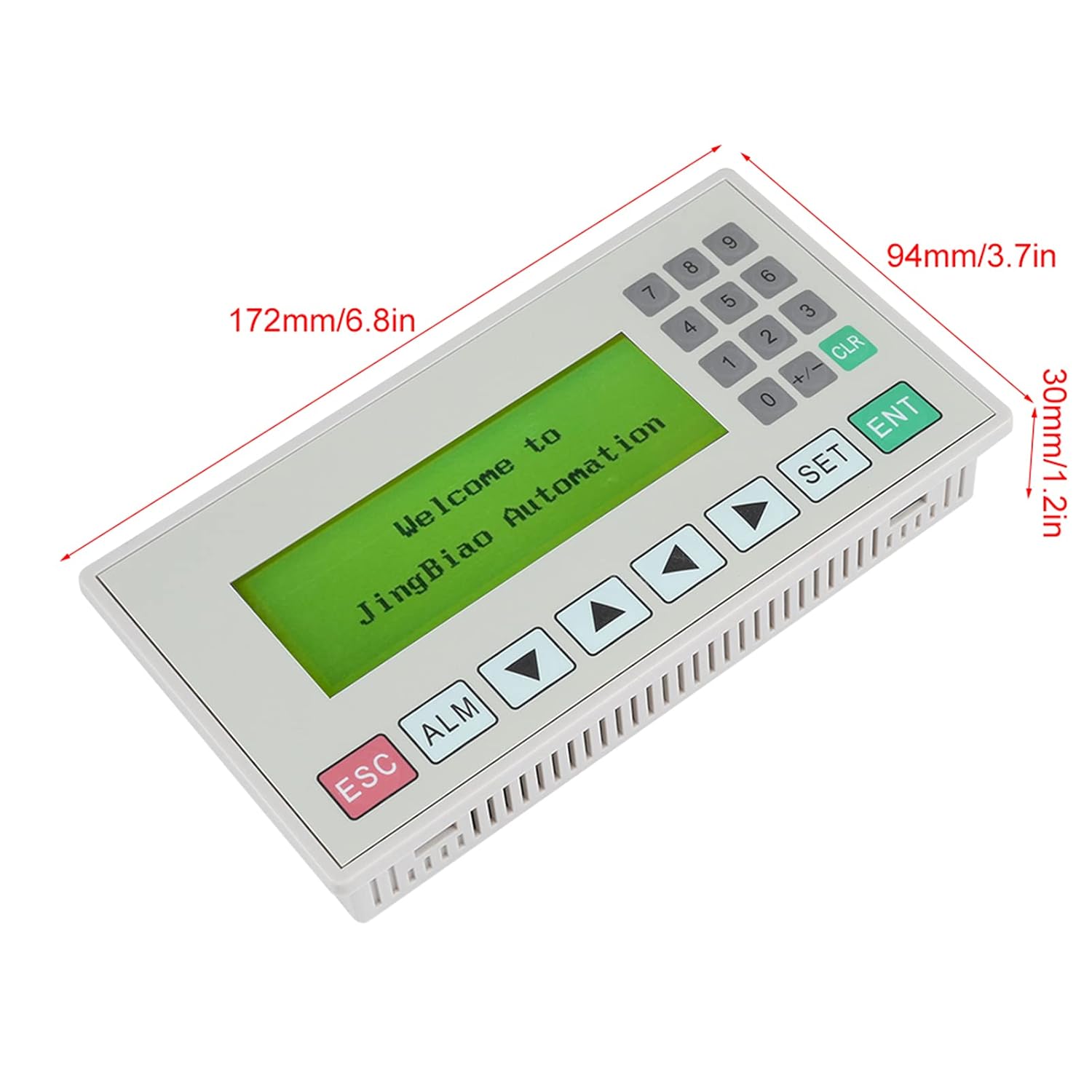

Specification: Model: OP320 - A Display size: 3.7 inches Display type: LCD screen Display color: monochrome Resolution: 192 x 64 pixels Brightness: 60cd/m2 Processor: 8-bit processor Memory: 64 KB Flash ROM Input method: keyboard input Communication port: COM1:PC RS232, PLC S485/RS232 Function button: 20 self-defined Power off allowed: 20ms Power supply :12~24V (V) ±10% <150mA Anti-interference test: voltage 1500v, p-p pulse cycle 1us, continuous 1S Pressure test: 500vAC 1 min Insulation resistance: >10MΩ Shockproof test: 10~25Hz grade: IP65 Working temperature: 0 ~ 50 Working environment humidity: 20~90%RH Storage temperature: d-20 ~70 Shell material: engineering plastics Display size: 101*36mm/4*1.4in Mounting hole size: 165*86mm/6.5*3.4in Size:172*94*30mm/6.8*3.7*1.2in Weight: Approx.338g/11.9oz Package list: 1 x Text Display 4 x Mounting Bracket 1 x Power Cord Terminal 1 x Download CableNote: Please note that the new type and old type of this product will be sent randomly and make sure you will not mind before ordering.
- 【Introduction】- OP320-A is a small man-machine interface, mainly used with various kinds of PLC (or intelligent controller with communication port)
- 【Function】- Communication protocol and screen data are downloaded to the display without PLC writing communication program. It has password , has alarm list function, line by line real-time display current alarm information. With background light STN liquid crystal display, 24 English characters x 4 lines, that is, 12 Chinese characters x 4 lines.
- 【Operation】- Make pictures on the computer by editing software TP200CN, input Chinese characters freely and set PLC address, use serial communication to download the screen

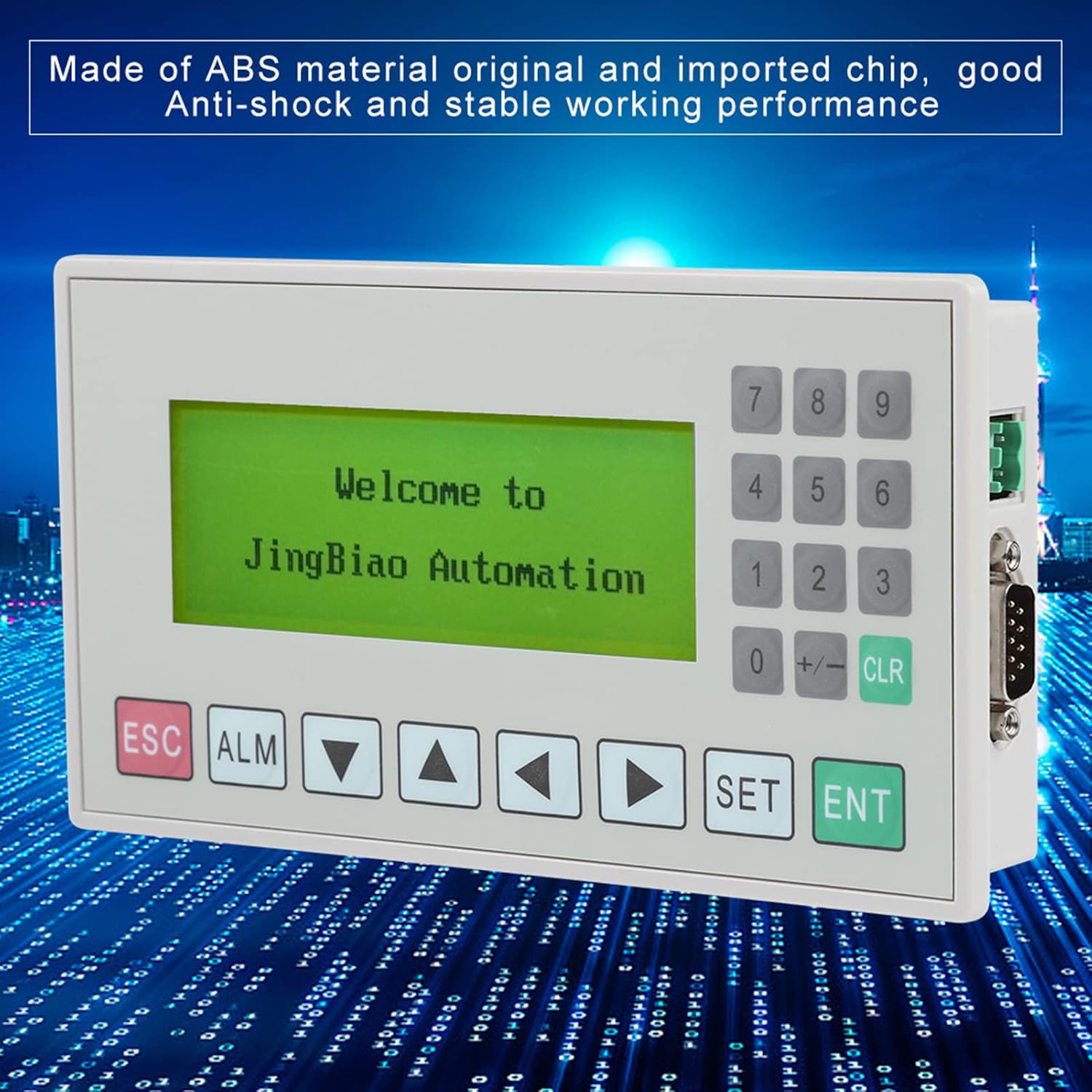

- 【Original Imported Chip】- Made of ABS material original and imported chip, good Anti-shock and stable working performance
- 【Can Control the Equipment Freely】- Monitor and modify the values and state of the internal registers or relays of the PLC in the form of text or indicator light so that the operator can control the equipment freely
| UPC | 794419778604 |
|---|---|
| Color | gray |
| Brand Name | Wal front |
| Unit Count | 1.0 Count |
| Item Weight | 0.34 Kilograms |
| Display Type | LCD |
| Manufacturer | Wal front |
| Material Type | Plastic |
| Operating Temperature | 50 Degrees Celsius |
| Item Dimensions L x W x H | 6.77"L x 3.7"W |
