H/D VGA USB LVDS Controller Board for 10.1 inch 1280X800 40 pins BP101WX1-206 GV101WXM LCD Display
Product details
| Management number | 211337571 | Release Date | 2026/04/04 | List Price | $14.76 | Model Number | 211337571 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

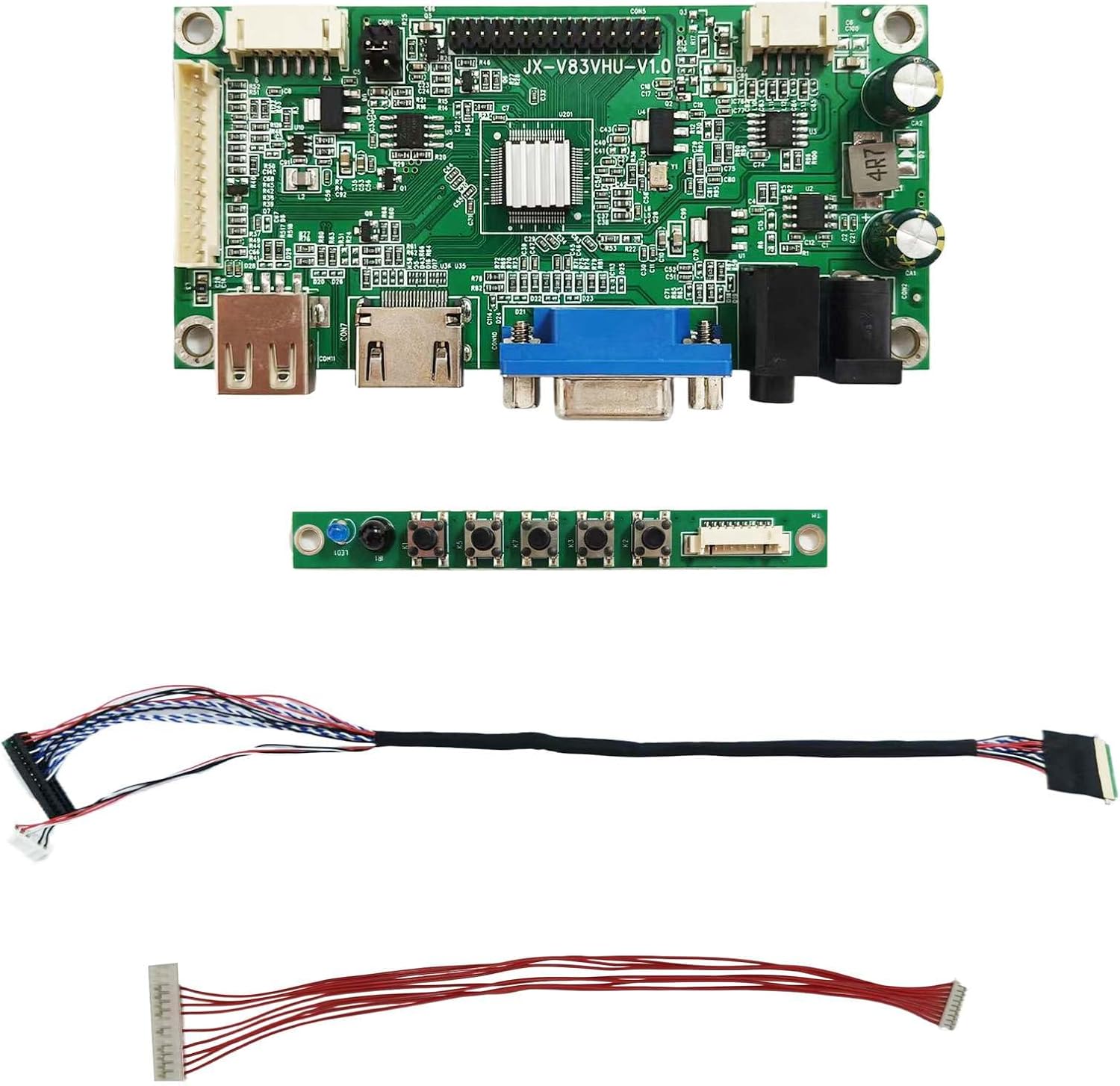

LCD Controller Board: Input Power Adapter: 12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <1WUSB Support VideoVideo Input: H/D VGA USBAudio Input: H/D PC-AudioAudio Output: Speaker ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 108mm x 52mm x 18mmCompatible Work With:10.1inch 1280x800 BP101WX1-206 GV101WXM-N85 EV101WXM-N10Packing list :1× LCD Controller Board VS-V83VHU-V1.01× LVDS Cable1× Keyboard With Cable1× Inverter Board
- 【LCD Controller Board】 Video Input: H/D VGA USB,Audio Input: H/D PC-Audio,Audio Output: Speaker Connector,Please use in insulated environment.
- 【Input Power Supply】12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
- 【Compatible Screen models 】10.1inch 1280x800 BP101WX1-206 GV101WXM-N85 EV101WXM-N10 display
- 【Plug and play】 Connecting the cables and ports according to link picture details ,Power on ,Button light become green,Then enter into signal cable,the screen can work well.
- 【Important】Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check.
| Manufacturer | FanyiTek |
|---|
