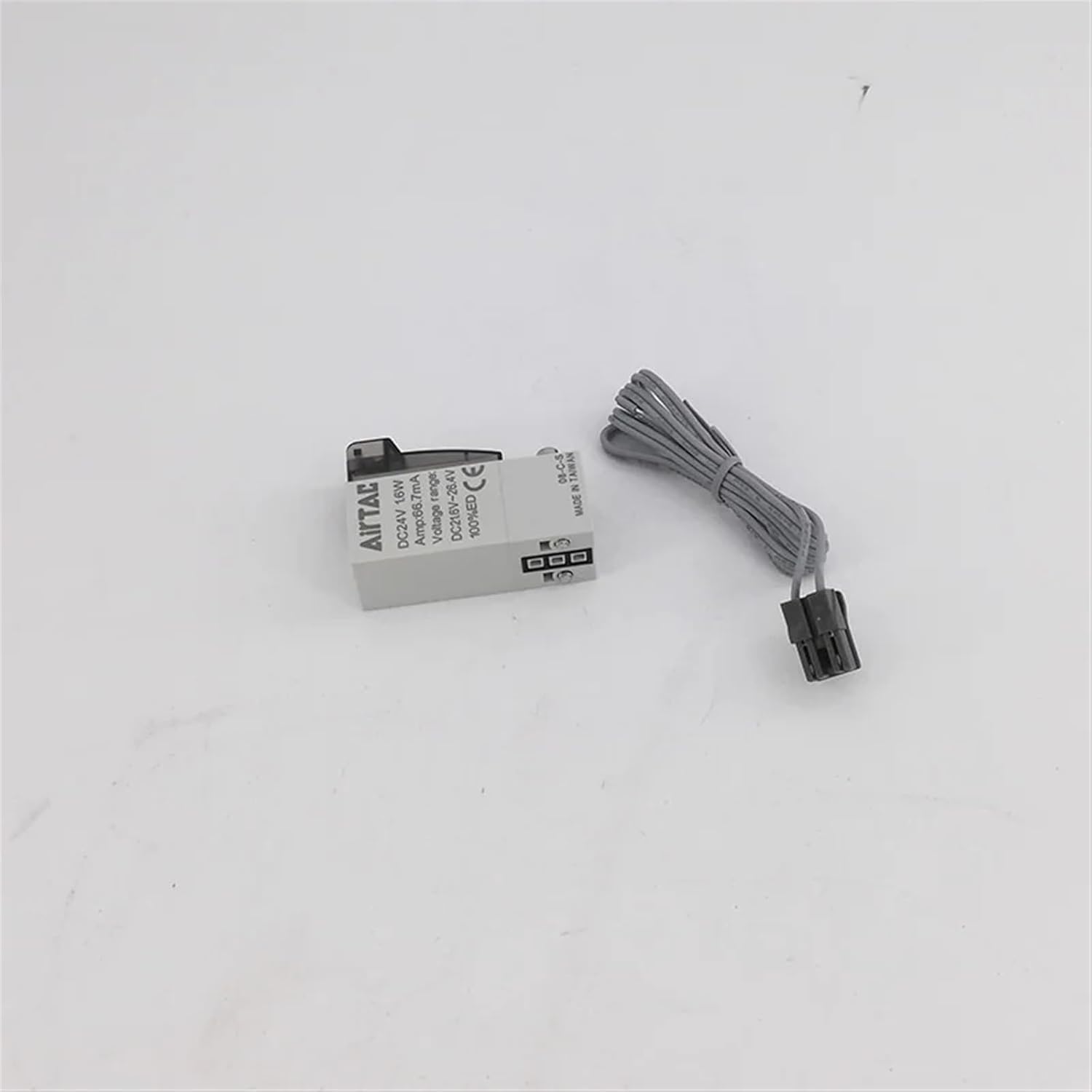

3 way micro solenoid valve CPV15P-050 with 0.5M wire CPV15-A/B/C/E/F-P with manual pin pneumatic valve(B-DC24V)
Product details
| Management number | 210632978 | Release Date | 2026/04/02 | List Price | $11.86 | Model Number | 210632978 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SolenoidsModel : CPV15P-050Orifice : 0.8mmVoltage :24V DC / 12V DC/ 24V AC / 110V AC / 220V AC optionalProduct Feature :1. None polarity design of DC circuit, the direction (vertical or horizontal ) of wiring can be adjusted freely according to the installation demand.2. Low starting voltage and long service life.3. There is no buzzing by the usage of AC power supply .4. With surge device can avoid the damage of solenoid valve by surge voltage .Specification:ModelCPV15Working MediumAir(40Micron Filtered)PortSizeAirInlet=Air =Exhaust=PT1/4"Acting typeInner Guide typeEffective sectionalArea0.44mm2(CV=0.024);0.55mm2(CV=0.03)Position NumberTwo-position three-wayWorking pressurerange0.15~0.8Mpa(21-114psi)Max.pressureresisance1.5Mpa(215psi)Working Temperature~20~70Voltage rangeAC:±15%~10%;DC:±10%Power ConsumptionAC:2.0VADC:1.6WReaction time<;10ms;off10msHeat resistance ratingPacking:one box + one valve
- Solenoids
- 3 way micro solenoid valve CPV15P-050 with 0.5M wire CPV15-A/B/C/E/F-P with manual pin pneumatic valve
| Item Weight | 1.76 ounces |
|---|---|
| Manufacturer | LZRAWKGTE |
| Item model number | LZRAWKGTE |
| Product Dimensions | 0.31 x 0.39 x 0.39 inches |
